2026 Year

Electric Fuel

Loading capacity Ton: 49

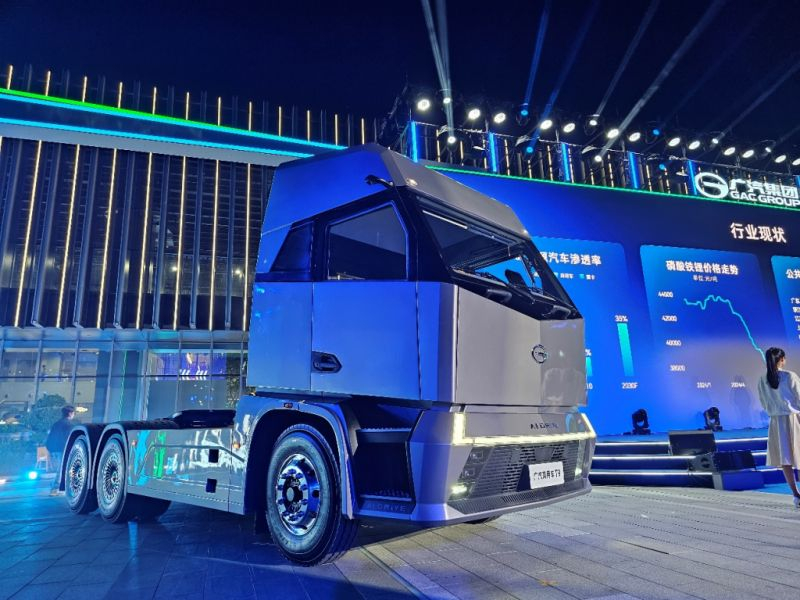

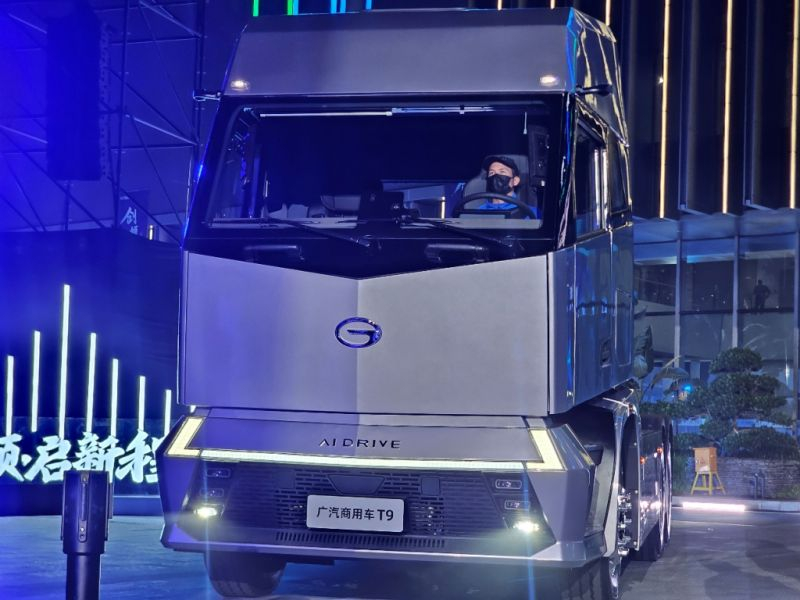

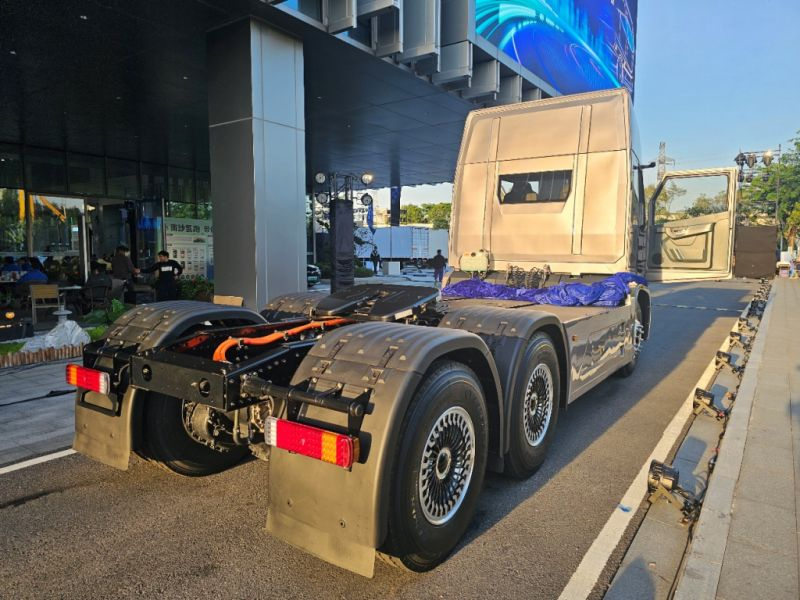

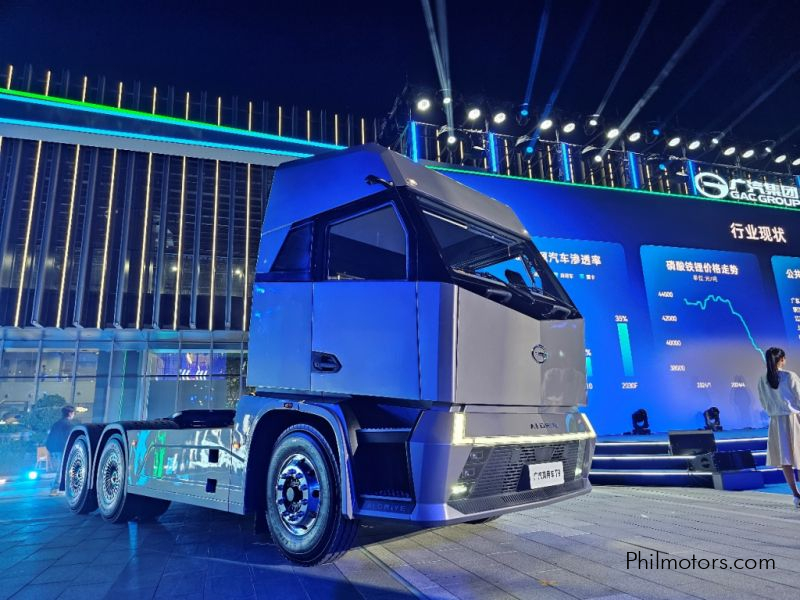

GAC T9 6x4 10-wheel electric tractor head truck
Overall Length: 7, 465 mm
Overall Width: 2, 550 mm
Overall height: 3, 700 mm
Wheelbase: 3, 800 mm + 1, 350 mm
Drive Type: 6x4 Traction Electric Drive
Electricity: 400. 6 kWh
EV Driving Range: 330 km
Curb Weight: 8, 900 kg
Towing Weight: 49, 000 kg
Maximum Speed: 89 km/h (1. 1 kWh/km)
Gradeability: 25%

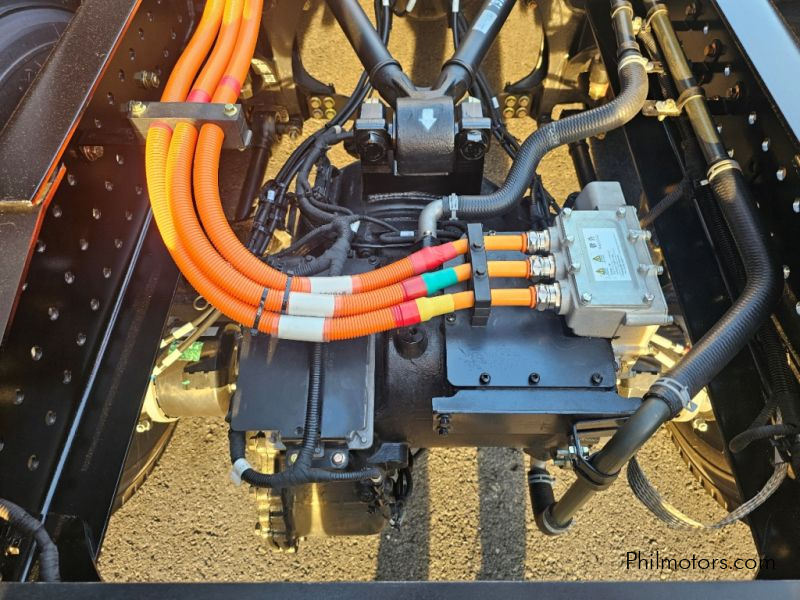

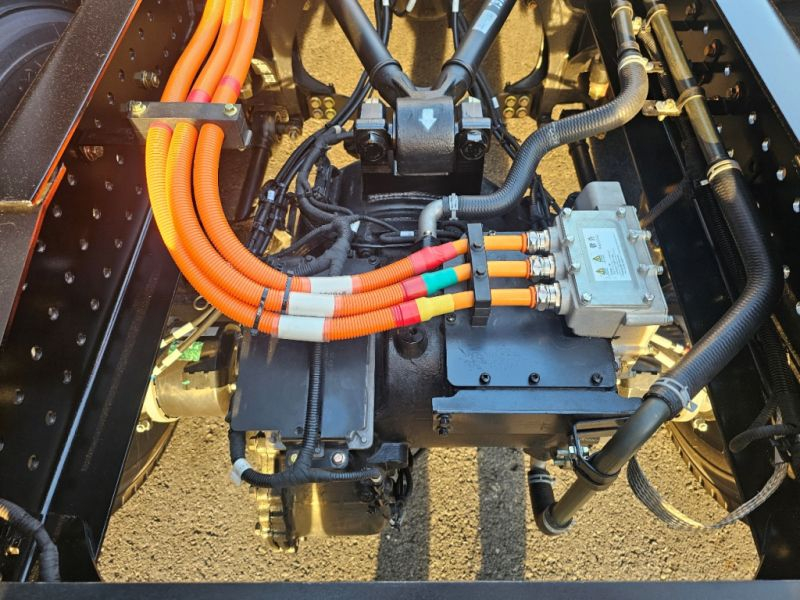

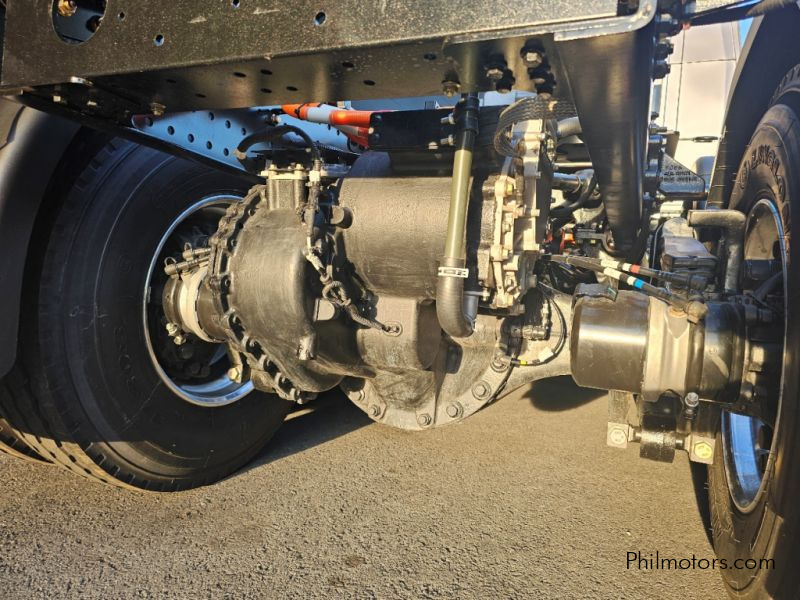

Electric Drive: Permanent magnet synchronous motor (130 x 2 / 230 x 2 kW) + 2-speed AMT
EV Battery: Lithium Iron Phosphate Battery
Frame: Through-type straight beam frame
Suspension: Four-point air suspension system
Steering System: Recirculating ball type, 110 mm diameter power steering system
Braking System: EBS + AEBS + ESC
Thermal Management: Integrated thermal management system, electric air conditioner (healing and cooling)

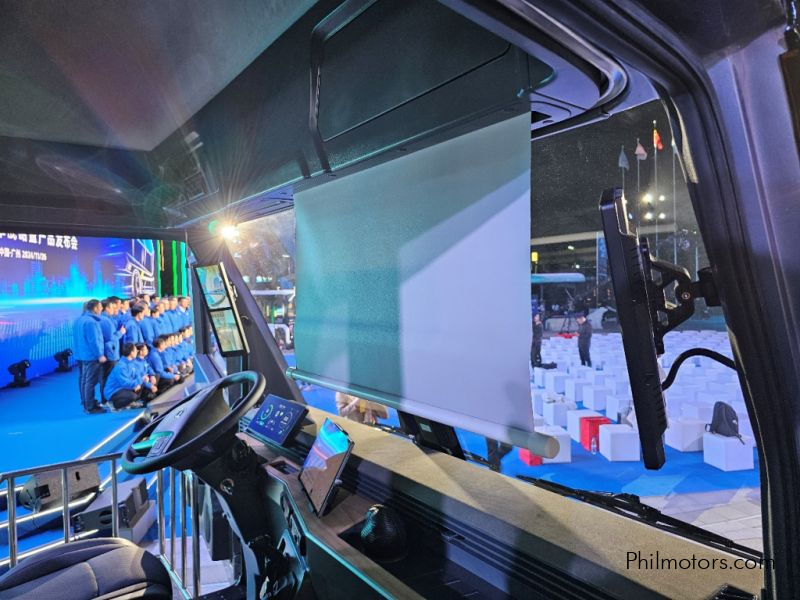

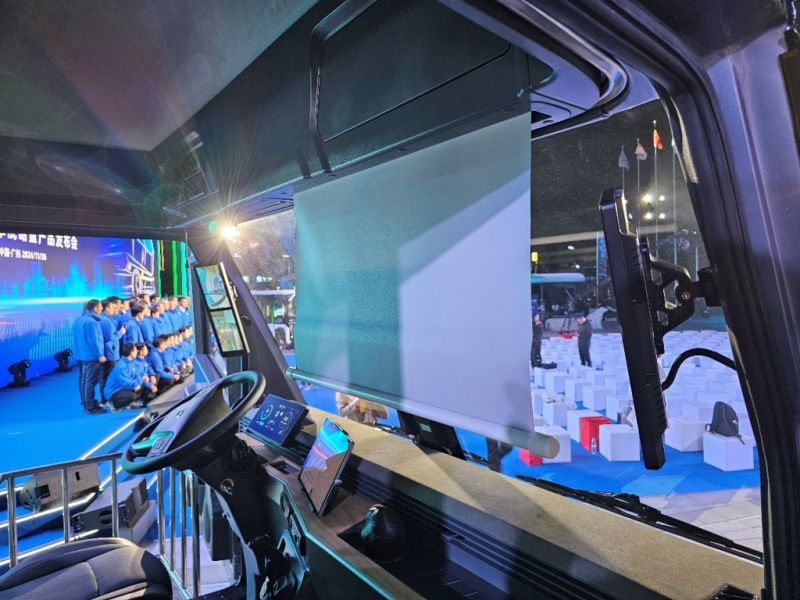

Cab: From a brand new flat-floor, high-roof cab
Charging Type: Dual-gun 500A
EV Battery Internal Protection: IP68
LED Daytime Running Lights

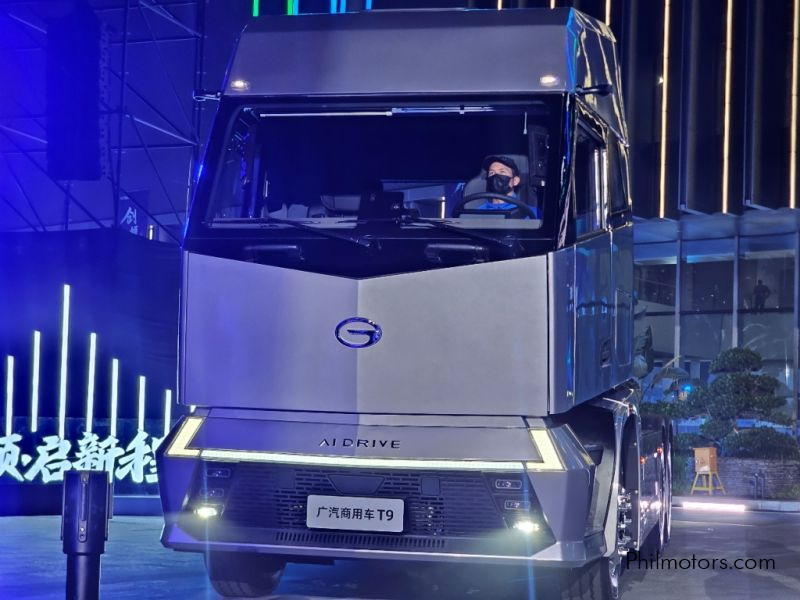

Matrix LED lens headlight system.

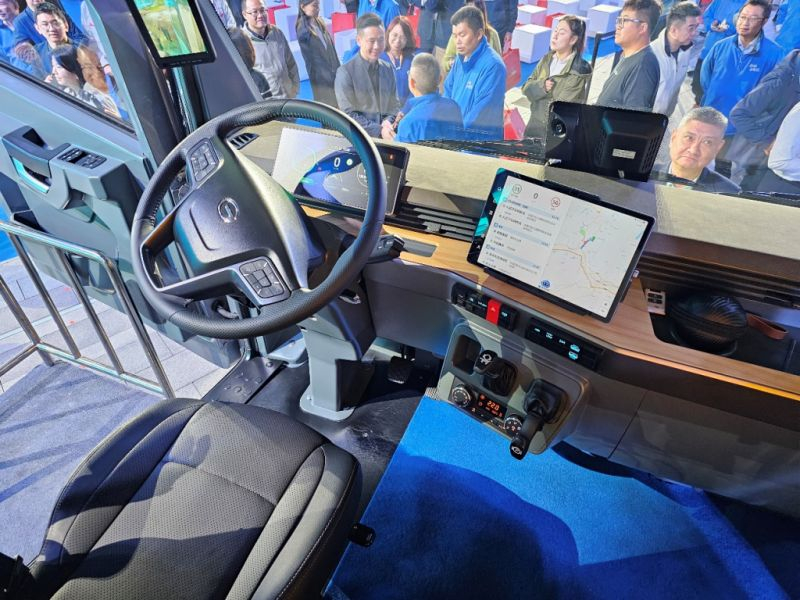

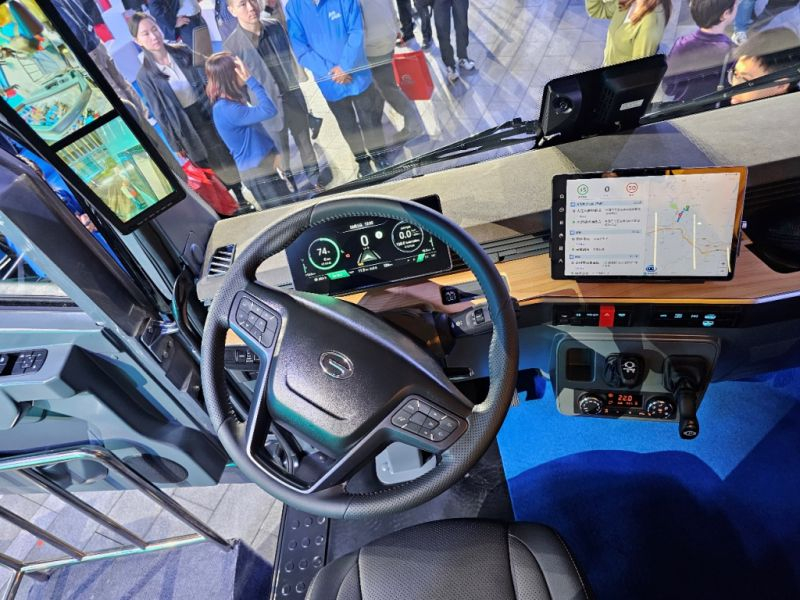

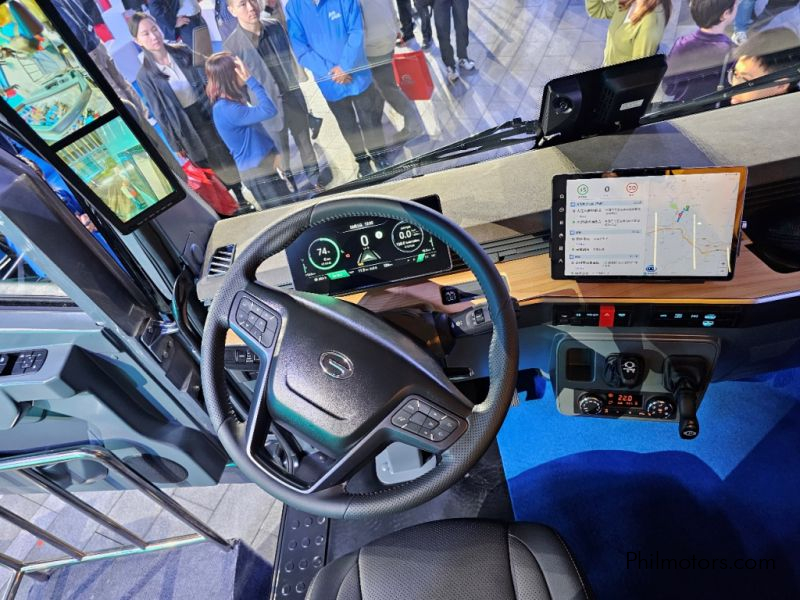

Multi-functional leather-wrapped steering wheel
